3200 MRL Passenger Elevator Custom

Home / Product / Passenger Elevator / 3200 MRL Passenger Elevator

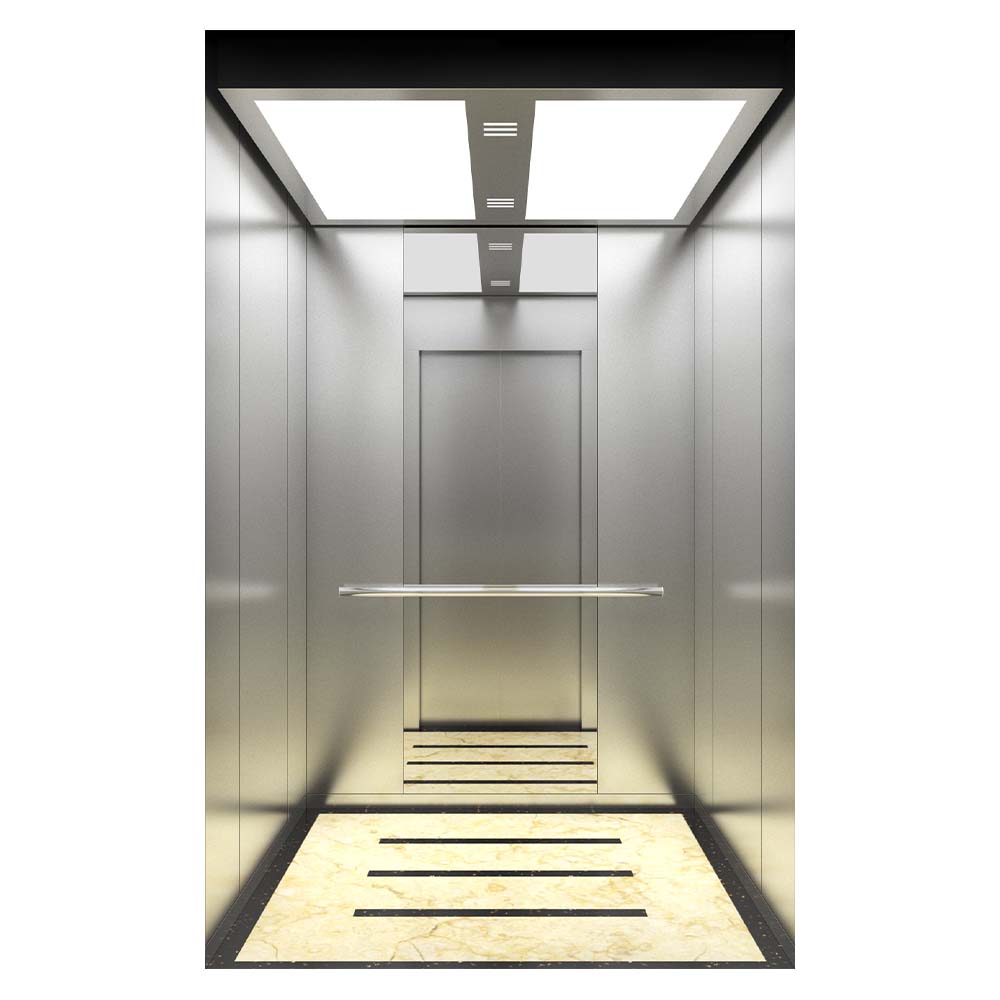

3200 MRL Passenger Elevator

——Residential elevator, machine roomless, small shaft elevator

Simple and practical for small and commercial residential buildings that is easy to plan and quick to install, providing green mobility, smart operations and space efficiency, offering variety designs and dimensioning flexibility as option. The 3200 machine-room-less passenger elevator meets the supporting needs of general residential, commercial buildings and other construction sites, covering the rigid demand and second and third residential markets, and provides architectural assistance design. In accordance with passenger flow planning and design, a new elevator space is created with humanized design concepts to help the building add value.
  • Max. Speed 1.75 m/s
  • Max. Travel 70 m
  • Max. Load 1150 kg
  • Max. elevators in group 4
Contact Us
PREV：3300N MRL Passenger ElevatorNEXT：3100 MR Passenger Elevator

Product advantages

Made Attentively, Technical Protection

TRACTION MOTOR BRAKE FORCE SELF-DETECTION INTELLIGENT CONTROL SYSTEM DOOR SYSTEM DOOR OPENING RESTRICTION DEVICE
Regular and timely detection of braking capacity of traction motor by self-diagnostic feature to prevent any potential failure or safety problem. Intelligent integrated control driver with accurate calculation of position information, to make elevator leveling more stable, accurately and effectively improve operating efficiency and riding comfort. Permanent magnet motor, high efficiency, large rotating torque, low energy consumption; highly comfortable with full closed loop control of torque, position and speed. To lock car door tightly to avoid security issues such as forcibly open door activity.
SHOCK ABSORPTION AND NOISE REDUCTION SYSTEM MODULAR ASSEMBLY ISO25745 CLASS-A, HIGHEST ENERGY SAVING CERTIFICATE
Various shock absorption measures to reduce vibration conduction. Configured with sound insulation, noise reduction measures to enhance ride comfort and user experience. Pre-engineered components for modular assembly system, as well as strict quality control greatly improve on-site installation quality and efficiency. Standby power consumption is less than 50W, which reduces the standby power consumption by 50%.
Load Speed Cabin Size Door Opening C.W.layout Door type Hoistway/Shaft Pit depth Overhead
kg m/s CW×CD EW×EH HW×HD PD(mm) TH(mm)
630

1

1.5

1.75

 1100×1400 700×2100 C.W. at side CO 1850×1850

1500

1550

1600

4250

4300

4350
630

1

1.5

1.75

 1100×1400 800×2100 C.W. at side CO/Doulbe 1850×1900

1500

1550

1600

4250

4300

4350
800
（825）

1

1.5

1.75

 1350×1350 800×2100 C.W. at side CO 2100×1850

1500

1550

1600

4250

4300

4350
800
（825）

1

1.5

1.75

 1350×1400 800×2100 C.W. at side CO/Doulbe 2100×1900

1500

1550

1600

4250

4300

4350
1000

1

1.5

1.75

 1600×1400 900×2100 C.W. at side CO 2350×1850

1500

1550

1600

4250

4300

4350
1000

1

1.5

1.75

 1400×1600 900×2100 C.W. at side CO/Doulbe 2250×2100

1500

1550

1600

4250

4300

4350
1050

1

1.5

1.75

 1600×1500 900×2100 C.W. at side CO 2350×1950

1500

1550

1600

4250

4300

4350
1050

1

1.5

1.75

 1500×1600 900×2100 C.W. at side CO/Doulbe 2250×2100

1500

1550

1600

4250

4300

4350
1000
（1050）
（Stretcher ladder）

1

1.5

1.75

 1100×2100 900×2100 C.W. at side SO 1850×2550

1500

1550

1600

4250

4300

4350
1000
（1050）
（Stretcher ladder）

1

1.5

1.75

 1100×2100 900×2100 C.W. at side CO 2100×2500

1500

1550

1600

4250

4300

4350
1150

1

1.5

1.75

 1800×1400 1000×2100 C.W. at side CO 2700×1800

1500

1550

1600

4250

4300

4350

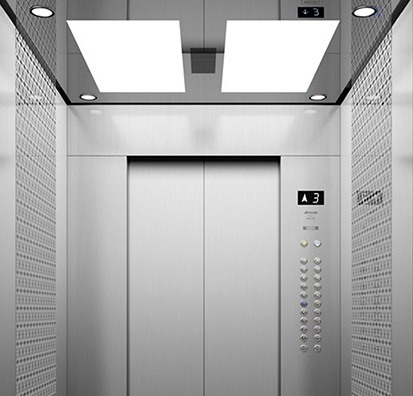

Car



G5278 G5279 G5280
G5281 G5287 G5288
G5289 G5290 G5292
Ceiling

G1008
G1008
G1010
G1010
G1013
G1013
G1038

Floor-PVC



G3121 G3122 G3123 G3308

Foor - Marble



G3308 G3310 G3317 G3353

G3364



Handrail



G6001 G6003 G6012

Door



G4246 G4247 G4248 G4249
G4250 G4251 Hairline SS Painted Steel
COP
G2113 G2116 G2141-1 G2149 G2150
LOP
G2209 G2245 G2253 G2256
Residential elevator, machine roomless, small shaft elevator
